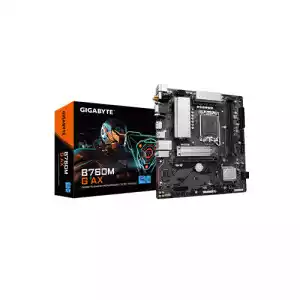

GIGABYTE B760M G AX DDR5 Intel LGA1700 Micro ATX Motherboard
The GIGABYTE B760M G AX DDR5 Intel LGA1700 Micro ATX Motherboard is engineered to deliver exceptional performance, connectivity, and reliability for modern PC builds. Powered by the Intel B760 Express Chipset, it supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA1700 socket, making it a versatile option for gamers, creators, and professionals alike. With support for dual-channel DDR5 memory up to a staggering 128GB (64GB per DIMM) and speeds reaching 8000+ MHz (OC), this board ensures next-generation bandwidth and responsiveness, along with support for Intel XMP profiles for effortless memory overclocking. Storage is future-ready with two M.2 PCIe 4.0 slots (CPU + chipset) and four SATA 6Gb/s ports, supporting RAID 0/1/5/10 for optimized performance and data redundancy. On the graphics side, the board integrates Intel UHD Graphics support with 1 x D-Sub, 1 x HDMI 2.1, and 1 x DisplayPort, capable of driving 4K displays with smooth visuals. Expansion is handled with 1 x PCIe 4.0 x16 slot for graphics cards and 1 x PCIe 3.0 x1 slot for add-on cards. Connectivity is a major highlight, featuring Intel Wi-Fi 6E AX211 for ultra-fast wireless on 2.4/5/6GHz bands, Bluetooth 5.3, and Realtek 2.5GbE LAN for lag-free networking. Audio is powered by a Realtek High Definition Audio codec, offering up to 7.1-channel surround sound for immersive entertainment. The rear I/O panel includes 1 x USB Type-C (USB 3.2 Gen 1), 3 x USB 3.2 Gen 1 ports, 2 x USB 2.0 ports, 1 x PS/2 combo port, 1 x HDMI, 1 x DisplayPort, 1 x D-Sub, 1 x RJ-45 port, 2 x antenna connectors, and 3 audio jacks, providing excellent connectivity for peripherals and displays. For internal expansion, users get USB 3.2 Gen 1, USB 2.0 headers, RGB/ARGB headers, multiple fan headers, TPM support, and front panel audio. Built with durability in mind, the motherboard incorporates voltage and temperature monitoring, fan speed control, and fail warnings, ensuring system stability under heavy loads. Measuring 24.4cm x 22.5cm, the Micro-ATX form factor makes it compact while still packing in high-end features. With a 3-year warranty, support for Windows 11/10 64-bit, bundled utilities like Norton Internet Security (OEM) and LAN bandwidth management software, the GIGABYTE B760M G AX DDR5 strikes the perfect balance between performance, efficiency, and future-proofing for mainstream and high-performance PC builds.
GIGABYTE B760M G AX DDR5 Intel LGA1700 Micro ATX Motherboard Price in BD
At Tech Land BD, the GIGABYTE B760M G AX DDR5 Intel LGA1700 Micro ATX Motherboard is available at the best deal, giving you premium features like Wi-Fi 6E, 2.5GbE LAN, DDR5 support, and high-speed M.2 PCIe 4.0 storage at an unbeatable price. Whether you’re building a gaming rig, a workstation, or a high-performance everyday PC, this motherboard ensures top-tier speed, reliability, and flexibility. Order today from Tech Land BD and enjoy genuine products, expert service, and competitive prices across Bangladesh.
FAQs:
Does the GIGABYTE B760M G AX support DDR4 memory?
No, this motherboard only supports DDR5 memory modules.
How many M.2 slots does this motherboard have?
It features two M.2 PCIe 4.0 slots for high-speed NVMe SSDs.
Does it come with built-in Wi-Fi?
Yes, it includes Intel Wi-Fi 6E AX211 and Bluetooth 5.3 support.
| Processor | |
| Supported CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset |
Intel B760 Express Chipset |
| Mainboard | |
| BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Memory | |
| Memory |
14th and 13th Generation Intel Core i9/i7 Processors: - Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Storage | |
| Raid |
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Supported Storage |
CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
| Graphics | |
| Graphics |
Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Networking & Connectivity | |
| LAN |
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
| WiFi |
Intel Wi-Fi 6E AX211 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Bluetooth |
BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard |
| Audio & Microphone | |
| Audio |
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Ports | |
| Slots |
CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x |
| Internal I/O Ports |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| External I/O Ports |
2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) / (2T2R) (Note) jkl 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks |
| USB |
Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| HDMI |
1 x HDMI port
|
| Software | |
| Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Software Features |
Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Features | |
| Special Features |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| Others | |
| Controller |
iTE I/O Controller Chip |
| Other Features |
I/O Controller
iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| Physical Specification | |
| Form Factor |
Micro ATX Form Factor; 24.4cm x 22.5cm |
| Dimension |
24.4cm x 24.4cm
|
| Warranty Information | |
| Warranty |
3 Years
|
