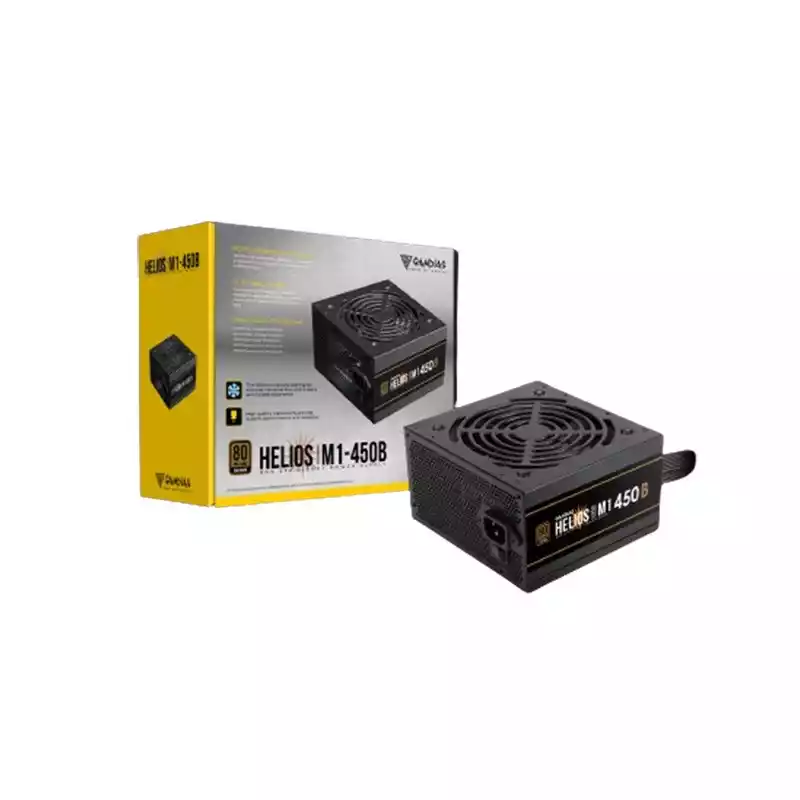

Gamdias HELIOS M1-450B 450W 80 Plus Bronze Power Supply
Gamdias HELIOS M1-450B 450W Power Supply
The Gamdias HELIOS M1-450B is a powerhouse of performance and reliability in the world of power supplies. Discover the full potential of your gaming setup with this incredible 450W 80 Plus Bronze certified device, which Techland BD will soon carry. The HELIOS M1-450B is built for maximum efficiency and complies with 80 PLUS Bronze standards to provide power without sacrificing energy savings. Even during long gaming sessions, the sophisticated cooling system's 120mm hydraulic bearing fan keeps your computer quiet and cool. This ATX12V v2.4 power supply is designed to be compatible and versatile, and it comes with a variety of connectors to satisfy your gaming needs. Essential connections such as multiple SATA and Molex connectors for your peripherals, 4+4 pins for the CPU, 6+2 pins for PCI-E, and 20+4 pins for main power are all included in the modular design. The HELIOS M1-450B provides steady and effective power delivery with a strong power factor correction (APFC) that has a PF value of 0.99. It also offers comprehensive protection features like OVP, UVP, OPP, OCP, and SCP to keep your components safe from potential threats. Wide input voltage range (100–240V) and frequency range (47–63Hz) allow flexibility for various power sources and make installation simple. Because the HELIOS M1-450B is non-modular, installation is made easier and a clean, well-organized build is guaranteed. With the HELIOS M1-450B, Techland BD offers a 5-year manufacturing warranty, bringing peace of mind and expressing our confidence in the robustness and efficiency of this outstanding power supply. Prepare to improve the Gamdias HELIOS M1-450B gaming experience. Await the official announcement to be among the first to experience the power of this state-of-the-art, 80 Plus Bronze certified power supply—made for gamers who expect nothing less than the best.
Cooling System | |
Fan Bearing |
120mm hydraulic bearing fan
|
Battery And Power | |
Efficiency (Approx.) |
Meet 80 PLUS Bronze efficiency
|
Voltage |
AC Input: 100-240V / 3.5-7A / 47-63Hz
DC Output: +3.3V / +5V / +12V / -12V / +5Vsb |
Output |
Max. Output Current: 16A / 12A / 33A / 0.3A / 2.5A
Max. Output Power: 90W / 396W / 3.6W / 12.5W |
Power |
450W
|
Ports | |
Connector |
Main Power: 1 (20+4 Pin)
CPU1 (4+4 Pin) PCI-E: 2 (6+2 Pin) SATA: 5 (5 Pin) Molex: 3 (4 Pin) |
Special Features | |
Protection |
OVP / UVP / OPP / OCP / SCP
|
Others | |
Other Features |
Support C6/C7 power state: Yes
Power Factor Correction: APFC with PF value of 0.99 |
Physical Specification | |
Dimension |
140 x 150 x 86 mm
|
Technical Info | |
Type |
ATX12V v2.4
|
Warranty Information | |
Warranty |
6 Years
|
-
Taufiq AhamadGamdias HELIOS M1 450B PSU is efficient with an 80 PLUS Bronze certification for up to 85% efficiency. It has a quiet 120mm fan and protections against common electrical issues. Supporting ATX12V v2.4 standards, it fits many PC setups. Though non-modular, its flat black cables help with cable management. Taiwanese Brand GAMDIAS provide 5-year replacement warranty with BURN WARRANTY, providing Best value for its price.01 August, 2024
