Hikvision DS-3E0109P-E/M(B) 8 Port Unmanaged PoE Switch
Stock : In Stock PID : P0332506221 Brand : Hikvision Model : DS-3E0109P-E/M(B) Warranty : 1 Year
0 ratings
Discount Price

4,200৳ 6,800

Product Declaimer

-
+
Buy Now

Hikvision DS-3E0109P-E/M(B) 8 Port Unmanaged PoE Switch

DS-3E0109P-E/M(B) is a layer 2 100M PoE switch. Based on wirespeed forwarding, the switch supports Ethernet PoE power
supply and extend mode. The power supply distance reaches as
long as 250 m. It also supports prior and stable transmission of
the important surveillance area video when connected to the
high priority ports. Hikvision 8 POE ports intelligently control the power supply when the power supply crosses the reaching capacity. 300 meter long-range between IPCs and switch 48 V DC, 4 / 8 core adaptive power supply, 8 x 100 Mbps PoE port, 1 x 100 Mbps ethernet port, RJ45 port, full-duplex, MDI / MDI-X adaptive, 30 W port power per port, PoE power budget, 60 W switching capacity, 1.339 Mbps packet forwarding rate.

Networking & Connectivity
MAC Address Table
2 K
Battery And Power
Power Supply
Power Supply: 48 VDC, 1.35 A



Max. Power Consumption: 65 W
Power Consumption
5 W
Ports
Port
Ports: 8 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port

Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive

Working Mode: Standard mode (default); Extend mode

Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding Mode: Store-and-forward switching

High Priority Ports: Ports 1 to 2
IP Phone
PoE Support
PoE Standard: IEEE 802.3af, IEEE 802.3at

PoE Power Pin

End-span: 1/2(-), 3/6(+)


Mid-span: 4/5(+), 7/8(-)


8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)


PoE Port: Ports 1 to 8

Max. Port Power: 30 W

PoE Power Budget: 60 W
Physical Specification
Humidity
5% to 95% (no condensation)
Operating Temperature
–10 °C to 55 °C (14 °F to 131 °F)
Dimension
170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)
Storage Temperature
–40 °C to 85 °C (–40 °F to 185 °F)
Weight
Gross Weight: 0.89 kg (1.96 lb)

Net Weight: 0.35 kg (0.77 lb)
Warranty Information
Manufacturing Warranty
1 Year
Submit A Review
To submit review you have to login first.
Any Suggestion/Complaint ?
To give suggestion you have to login first.
Related Products

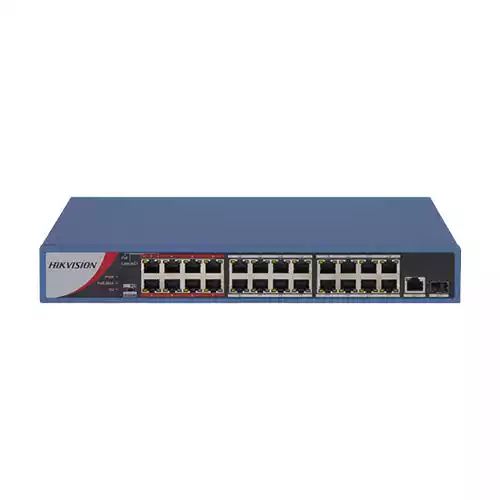

Hikvision DS-3E0326P-E-M 24 Port Fast Gigabit Ethernet Unmanaged PoE Manage Switch Hikvision DS-3E0326P-E-M 24 Port Fast Gigabit Ethernet Unmanaged PoE Manage Switch

৳ 25,000 29,500

In Stock

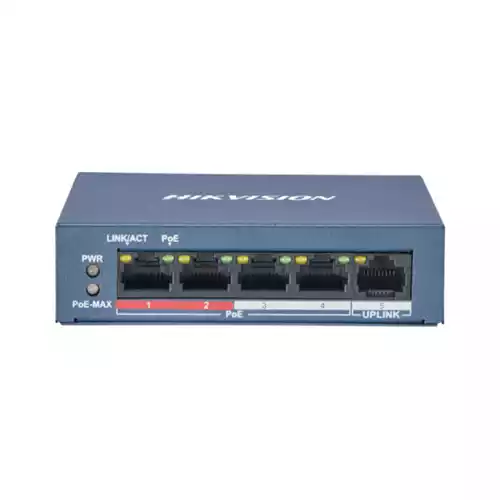

Hikvision DS-3E0105P-E/M(B) 4-Port Port Fast Ethernet Unmanaged POE Switch Hikvision DS-3E0105P-E/M(B) 4-Port Port Fast Ethernet Unmanaged POE Switch
