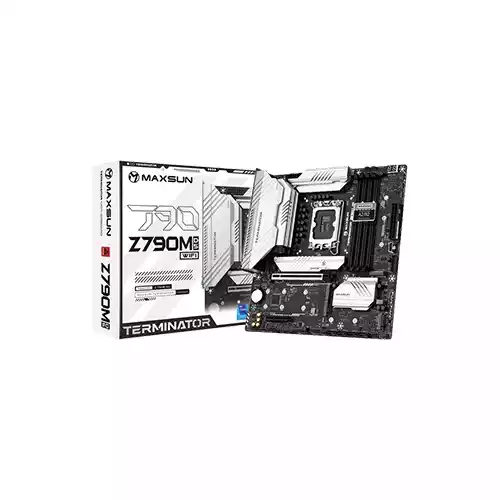

Maxsun Terminator Z790M D5 WIFI Motherboard Overview
The Maxsun Terminator Z790M D5 WIFI Motherboard, available at TechLand BD, is a cutting-edge product designed for 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors. It features the INTEL Z790 chipset and supports LGA 1700. The card has 4 DDR5 memory slots, with a maximum memory capacity of 192GB. It supports a wide range of memory speeds, from DDR5 4800(JEDEC) MHz to DDR5 7000+(OC) MHz, and supports Intel XMP 3.0 OC and Dual-Controller Dual-Channel mode. The onboard graphics include 1 DisplayPort 1.4 and 1 HDMI port, which supports up to 4K@30Hz. The card has 1 PCIe 5.0 x16 slot and 1 PCIe 3.0 x4 slot. It offers extensive storage options, with 5 M.2 slots (Key M) that support PCIe 4.0 x4 mode and 4 SATA 6Gb/s ports. It supports RAID 0, RAID 1, RAID 5, and 10 for SATA storage devices. The card has a total of 15 USB ports, including USB 3.2 Gen2x2 Type C and USB 3.2 Gen1 Type A. It features Realtek RTL8125BG 2.5G LAN and Intel Wi-Fi 6E AX211, supporting MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, and Bluetooth 5.3. The audio is powered by Realtek ALC897 Codec, supporting 7.1-Channel High Definition Audio and S/PDIF output. The card supports Windows 11 64-bit and Windows 10 64-bit operating systems. The form factor is M-ATX, with dimensions of 245mm x 245mm. This Motherboard is available at TechLand BD.| Processor | |
| Supported CPU |
12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
|
| Mainboard | |
| Chipset |
Intel Z790
|
| Memory | |
| Memory Size |
Memory Max.: 192GB
|
| Memory Type |
DDR5
|
| Memory Slot |
4
|
| Memory |
Memory Channel: Dual
|
| Storage | |
| Storage |
Storage Interface: 6.0Gb/s
M.2/SSD Expansion Slot Details 5 x M.2 (3 x M.2 type 2242/2280/22110 (supports PCIe 4.0 x4 mode), 2 x M.2 type 2242/2280 (supports PCIe 4.0 x4 mode)) |
| SSD (Solid-State Drive) |
M.2/SSD Expansion Slot: 5
|
| Graphics | |
| Graphics |
Graphics Chipset: Integrated With Processor
|
| Networking & Connectivity | |
| LAN |
LAN Chipset: Realtek RTL8125BG 2.5G LAN
LAN Speed (Mbps): 10/ 100/ 1000/ 2500Mbps |
| Wi-Fi |
Intel Wi-Fi 6E AX211
|
| Bluetooth |
v5.3
|
| Audio & Microphone | |
| Audio |
Audio Chipset: Realtek ALC897 Codec
Audio Channel: 7.1 |
| Battery And Power | |
| Power Consumption |
60W
|
| Ports | |
| PCI Card Slot |
1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x4 slot
|
| USB |
1 x USB 3.2 Gen2x2 Type C, 4 x USB 3.2 Gen1 Type A, 4 x USB 2.0
|
| HDMI |
1
|
| Special Features | |
| RGB |
Yes
|
| Features |
Surging property,
10 phase power supply & hybrid heat dissipation, Expansion and upgrade, 5 x M.2 slots, Fast transmission, Front and rear dual 20G Type-C |
| Others | |
| Compatible |
Raptor Lake Refresh 14600K,
Core i3 12100F, Core i3 13100F, Core i5 12400F, Core i5 13400F, Core i5 13500, Core i7 13700KF etc Intel Core Processors, Pentium Gold and Celeron Processors |
| Other Features |
DisplayPort (DP): 1
SATA Port: 4 TPM Port: 1 COM Port: 1 Raid Support: 0, 1, 5, 10 |
| Physical Specification | |
| Form Factor |
Micro-ATX
|
| Technical Info | |
| Supported Operating System |
Windows 11, 10
|
| Model |
Terminator Z790M D5 WIFI
|
| Supported Sockets |
LGA1700
|
| Warranty Information | |
| Warranty |
3 Years
|
