Discount Price

4,400৳ 4,900

Product Declaimer

-
+

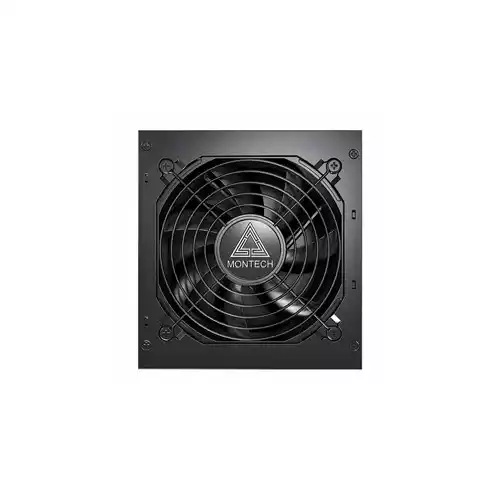

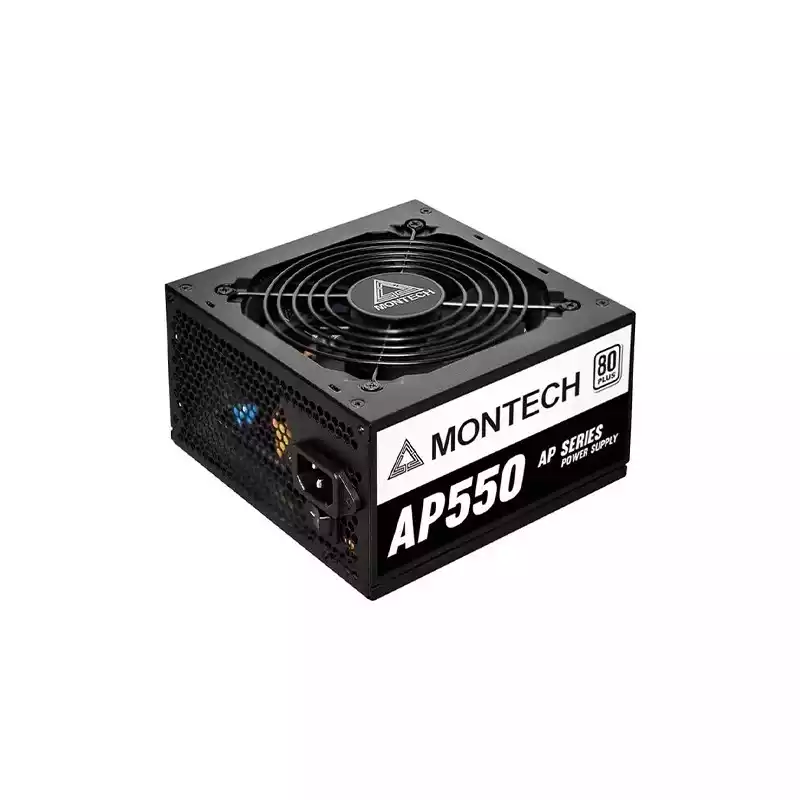

Montech AP 550 550W ATX Non Modular Power Supply in BD

The Montech AP 550 550W ATX Non-Modular 80 Plus Power Supply, an essential component for PC builders and enthusiasts, is now available at TechLand BD, providing reliable and efficient power delivery for computing systems. Crafted by Montech, this power supply exemplifies reliability and functionality, even in demanding setups. Emphasizing efficiency and stable power distribution, this non-modular ATX 12V PSU ensures consistent performance without compromising on quality.Equipped with a 120mm fan, this power supply guarantees optimal cooling performance, ensuring efficient heat dissipation during extended usage. Though lacking lighting effects, the focus lies on delivering consistent and stable power without unnecessary frills. The 86% efficiency rating and 80 Plus certification underscore its commitment to providing power efficiency while maintaining performance.The Montech AP 550 550W PSU doesn't merely deliver power but safeguards your system with a range of protection features. It incorporates safeguards like Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Under Voltage Protection (UVP), ensuring the safety of connected components against electrical anomalies, contributing to system longevity.In terms of connectors, this power supply offers a balance between versatility and compatibility. With 1 ATX Main Connector, 2 EPS Connectors, 2 PCIe Connectors, and 6 SATA Power Connectors, it caters to various configurations, facilitating the connection of essential components.TechLand BD proudly offers the Montech AP 550 550W ATX Non-Modular Power Supply, ideal for builders seeking efficiency, reliability, and safety in their computing systems, providing a robust power solution for diverse setups.

Cooling System
Fan
120mm
Battery And Power
Power Supply Support
Min. Power (Approx.): 470W

Maximum Power: 550 Watt

Input AC: 100-240Vac 50-60Hz 10A

Input Voltage: 100 - 240Vac

Input Frequency Range: 50 - 60Hz

Input Current: 10A

Peak Output Capacity: 550 Watt

Operating Temperature: 0 - 45 Degree C
PSU
Non Modular

ATX 12V
Ports
PCI Card Slot
2
Others
Other Features
Series: AP

Efficiency: 86% Efficiency

Efficiency Rating: 80 Plus

Protection:

OVP / OPP / SCP / UVP

Over Voltage Protection (OVP)

Yes

Over Power Protection (OPP)

Yes

Over Current Protection (OCP)

No

Over Temperature Protection (OTP)

No

Short Circuit Protection (SCP)

Yes

Under Voltage Protection (UVP)

Yes

ATX Main Connectors-1

EPS Connector: 2

SATA Power Connectors: 6

20+4PIN - 1, 4+4PIN - 2, SATA - 6, 6+2PIN - 2, Molex 4Pin - 2. MONTECH AP Series PSUs consist of high-quality components, with up to 86% high energy-saving efficiency. Paired with the 120mm silent fan provides excellent air-cooling performance at a low noise level. Along with the Single +12V design, the MONTECH AP series PSUs are stable and reliable.

Specialty:

80 PLUS White Certified, 120mm Silent Fan, Powerful Single +12V output. High-quality components provide stable and reliable performance, effectively increase the durability of the PSUs. AP series adopt a high airflow cooling fan while maintaining low operational noise. Allow your system to work quietly during high load.The powerful single +12V output design provides more reliable support for your GPU and other PC components.
Physical Specification
Color
Black
Form Factor
ATX
Dimension
150 x 140 x 86mm
Technical Info
Model
AP 550 550W
Warranty Information
Warranty
3 year
