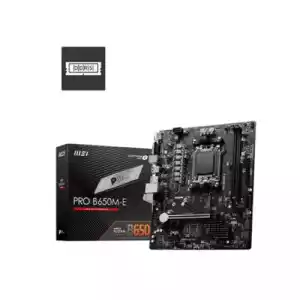

MSI PRO B650M-E DDR5 AMD AM5 mATX Motherboard
MSI PRO B650M-E DDR5 AMD AM5 mATX Motherboard is a reliable and efficient choice for users who need solid performance and stability for their desktop builds. Designed with the AMD B650 chipset and AM5 socket, it supports AMD Ryzen 8000 and 7000 Series Desktop Processors, making it ideal for both modern productivity setups and casual gaming systems. This motherboard offers dual DDR5 slots with a maximum capacity of 128GB and supports impressive overclocked speeds of up to 6800+ MHz for 1DPC 1R configurations. Memory overclocking is made easier with AMD EXPO support, while dual-channel mode ensures optimal bandwidth and performance. Storage is handled by one PCIe 4.0 x4 M.2 slot for high-speed NVMe drives and four SATA 6G ports for traditional storage solutions, with RAID configurations available for enhanced data management. For visuals, it offers HDMI 2.1 output supporting up to 4K 60Hz and a VGA port for legacy displays (output availability depends on processors with integrated graphics). Networking is powered by the Realtek RTL8111H Gigabit LAN for stable wired connections, while audio is enhanced with the Realtek ALC897 codec providing 7.1-channel high-definition sound for an immersive multimedia experience. Expansion options include one PCI-E 4.0 x16 slot and one PCI-E 3.0 x1 slot, accommodating various add-on cards. Connectivity is comprehensive with multiple USB ports, including USB 3.2 Gen 1 and USB 2.0 on both the front and rear panels. The motherboard also features EZ Debug LED for quick troubleshooting, TPM 2.0 support for security, and RGB LED header for basic lighting customization. With its mATX form factor (211mm x 243.84mm), it fits easily into compact cases while providing all the essentials for a capable and future-ready PC build. Backed by a 3-year warranty, the MSI PRO B650M-E DDR5 ensures long-term dependability and performance for your computing needs.
MSI PRO B650M-E DDR5 AMD AM5 mATX Motherboard Price in BD
Tech Land BD offers the MSI PRO B650M-E DDR5 AMD AM5 mATX Motherboard at competitive prices with full warranty coverage. As an authorized retailer, Tech Land BD guarantees genuine products, expert guidance, and dependable after-sales service. Customers benefit from secure payment methods, nationwide fast delivery, and dedicated support for assembling or upgrading their systems. Whether you’re building a new PC or upgrading an existing one, Tech Land BD ensures a smooth and reliable buying experience with the confidence of MSI’s 3-year warranty.
FAQs
Q: Does this motherboard support Ryzen 8000 Series processors?
A: Yes, it supports both AMD Ryzen 8000 and 7000 Series Desktop Processors.
Q: Can I use DDR4 memory on this motherboard?
A: No, it only supports DDR5 memory modules.
Q: Does it have built-in Wi-Fi?
A: No, it does not include built-in Wi-Fi, but you can add a separate PCIe or USB Wi-Fi adapter.
Processor | |
Supported CPU |
Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5 |
Chipset |
AMD B650 |
Memory | |
Memory |
2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
Storage | |
Supported Storage |
1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
Graphics | |
Graphics |
1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Networking & Connectivity | |
LAN |
Realtek RTL8111H Gigabit LAN |
Audio & Microphone | |
Audio |
Realtek ALC897 Codec 7.1-Channel High Definition Audio |
Ports | |
VGA |
1 |
Slots |
1x PCI-E x16 slot • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
Internal I/O Ports |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
External I/O Ports |
HDMI VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0 |
USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
HDMI |
1x HDMI |
Special Features | |
Special Features |
4x EZ Debug LED |
Others | |
Other Features |
1x TPM pin header(Support TPM 2.0) |
Physical Specification | |
Form Factor |
mATX 211mmx243.84mm |
Technical Info | |
OS |
Support for Windows 11 64-bit, Windows 10 64-bit |
Warranty Information | |
Warranty |
3 Years
|
