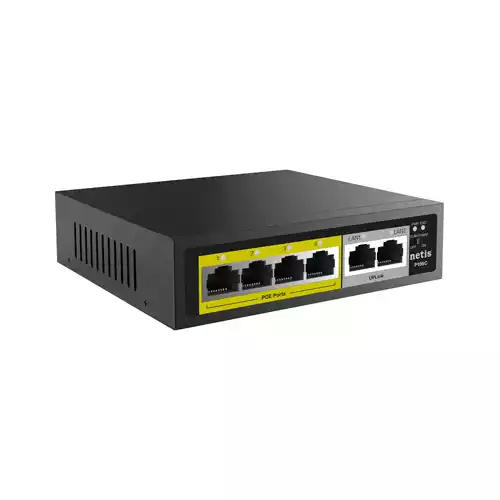

NETIS P106C standard POE switch in Bangladesh
Netis P106C is a 100M standard POE switch that provides 6*10/100M adaptive RJ45 ports. Ports 1~4 features POE power supply capability and can be used as Power over Ethernet devices. The power supply port can automatically detect and recognize the powered device that complies with the IEEE 802.3af/at standard and supply power through the network cable.Supports two modes: normal switch mode/250M ultra-long transmission. P106C makes it easier for you to deploy wireless access point (AP) and IP terminal network devices using POE technology.
| Networking & Connectivity | |
| Advanced Functions |
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Supports POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging |
| Bandwidth |
Etherent:10Mbps(Half-duplex);20Mbps(Full-duplex)
Fast Entherent:100Mbps(Half-duplex);200Mbps(Full-duplex) |
| Data Transfer Rate |
4*10/100Mbps POE ports（Data/Power）
2*10/100M uplink RJ45 ports (Data) |
| Battery And Power | |
| Power |
Single port maximum power 30W,
Whole switch maximum power 58W Support over-current,over-voltage and short-circuit protection Support Soft Start of High Power PD Support sequential boot-up Power Supply Pin:12+/36- AC 110~240V 50/60HZ |
| Ports | |
| Port |
4*10/100Mbps POE ports（Data/Power）
2*10/100M uplink RJ45 ports (Data) |
| Physical Specification | |
| Environment |
Operation Temperature：0℃～40℃
Storage Temperature：-40℃～70℃ Operation Humidity：10%～90% RH Non-condensing Storage Humidity：5%～90% RH Non-condensing |
| Form Factor |
124mm*115mm*33mm
|
| Technical Info | |
| Indicator |
Normal switch mode/Extend mode
|
| Model |
P106C
|
| Warranty Information | |
| Warranty |
1 Years
|
