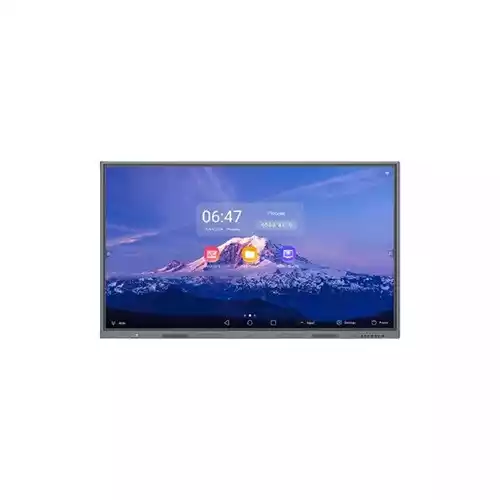

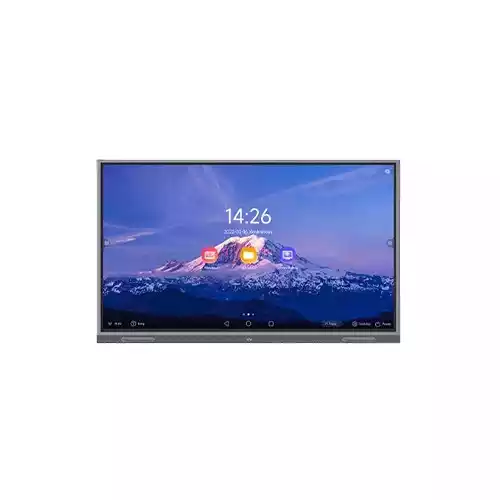

UNIVIEW UNV MW3565-U-E 65-Inch 4K SMART Interactive Board

UNIVIEW UNV MW3565-U-E 65-Inch SMART 4K UHD Interactive Board, available at TechLand BD, is a cutting-edge digital board designed to facilitate interactive communication and collaboration. This 65-inch 4K UHD display delivers high-resolution images with a brightness of 350 cd/m² and a contrast ratio of 1200:1, ensuring clear visibility of every detail. The board runs on Android 12.0 with an RK3588 CPU, featuring 4-core A76 (2.4G) + 4-core A55 (1.8G), and comes with DDR4: 8GB RAM and eMMC: 64GB ROM. The infrared touch screen supports 20-point multi-touch at most, allowing multiple users to interact with the board simultaneously. It also offers a variety of connectivity options, including HDMI, USB, VGA, Ethernet, RS232, and audio inputs and outputs. The board also features Wi-Fi6 + Wi-Fi5 dual-module, supports 5G/2.4G, and Bluetooth 5.2. The product dimensions are 1498 * 911 * 89(mm) and it weighs 40.5 kg. The UNIVIEW UNV MW3565-U-E is designed to operate in a temperature range of 0 to 50°C and a humidity range of 10% to 90% RH. The standard package from TechLand BD includes the interactive board, a power cable, two stylus pens, a wall bracket, and a user manual.

Processor
Processor
RK3588: 4-core A76 (2.4G) + 4-core A55 (1.8G)
Processor Series
2.4GHz
Memory
Memory Size
8GB
Memory Type
DDR4
Storage
Storage
64GB
Storage Type
eMMC
Display
Screen Size
65 inches
Resolution
3840*2160
Panel Type
DLED backlight
Brightness
350
Display Touch
Touch Control: Infrared touch screen, 20-point multi-touch at most

Touch Precision (mm): ±1

Recognizable Object: 5 points 2mm

Glass: 4mm tempered glass, level 7 on Mohs hardness scale, anti-glare

Touch Response Time (ms): ≤10

Touchscreen Input: Opaque objects (e.g. finger, pen, etc.)
Response Time
8 ms
Viewing Angle
178°/178°
Contrast
1200:1
Color Support
1.07B
Networking & Connectivity
LAN
2*RJ 45,10M/100M/1000M adaptive Ethernet Interfaces
WiFi
Wi-Fi6 + Wi-Fi5 dual-module, supports 5G/2.4G
Bluetooth
BT 5.2
Audio & Microphone
Audio Input
1*AUDIO IN
Built-in Speaker
2* 17W Treble (8Ω 5W) + 2*bass (4Ω 6W)
Audio Output
1*AUDIO OUT
Battery And Power
Power Supply
AC 100 to 240V, 50/60Hz
Ports
USB
3* USB 3.0

1* USB Type C

1* USB Type B
HDMI
Video Input: 3*HDMI IN (4K@60)

Video Output: 1*HDMI OUT (4K@60)
Software
Operating System
Android 12.0
Physical Specification
Wall mountable
Yes

Wall mount hole (mm): 500*400

Wall mount screw: 4-M8 screw hole
Operating Temperature
0 to 50°C
Dimension
1498*911*89

1632*1081*222
Weight
Net weight: 40.5

Gross weight:49.0
Warranty Information
Warranty
3 Years
